Simple dry mortar production line CRM2

Short Description:

Capacity: 1-3TPH; 3-5TPH; 5-10TPH

Features and Advantages:

1. Compact structure, small footprint.
2. Equipped with a ton bag unloading machine to process raw materials and reduce the work intensity of workers.
3. Use the weighing hopper to automatically batch ingredients to improve production efficiency.
4. The whole line can realize automatic control.

Send email to us

Product Detail

Introduction

Simple dry mortar production line CRM2

The simple production line CRM2 is suitable for the production of dry mortar, putty powder, plastering mortar, skim coat and other powder products. The whole set of equipment has compact structure, small footprint. It equipped with a ton bag unloading machine to process raw materials and reduce the work intensity of workers. It adopts the weighing hopper to automatically batch ingredients to improve production efficiency. The whole line can realize automatic control.

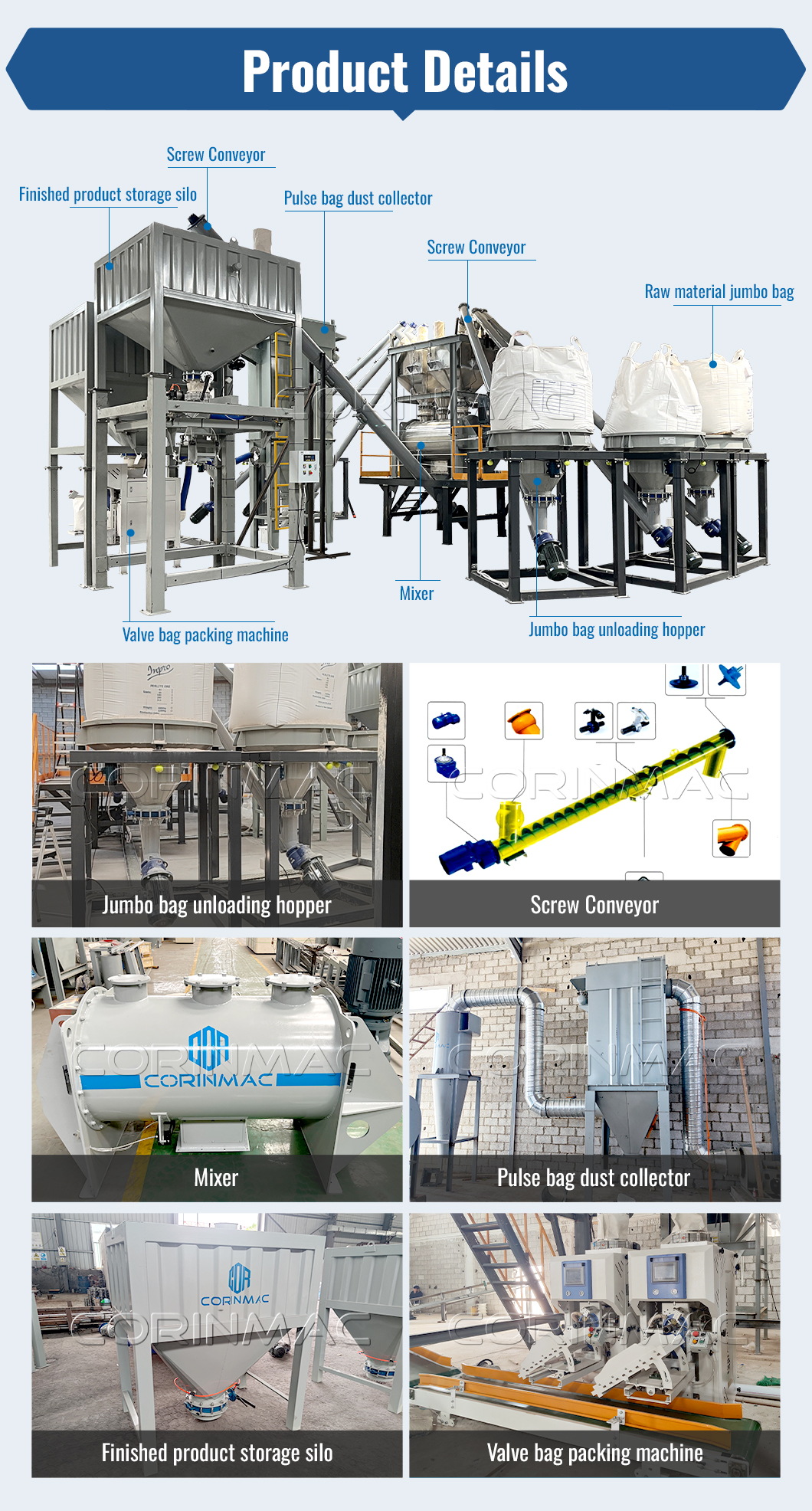

Product details

The configuration is as follows

Screw conveyor

Screw conveyor is suitable for conveying of non-viscous materials such as dry powder, cement, etc. It is used to transport dry powder, cement, gypsum powder and other raw materials to the mixer of the production line, and transport the mixed products to the finished product hopper. The lower end of the screw conveyor provided by our company is equipped with a feeding hopper, and the workers put the raw materials into the hopper. The screw is made of alloy steel plate, and the thickness is corresponding to the different materials to be conveyed. Both ends of the conveyor shaft adopt a special sealing structure to reduce the impact of dust on the bearing.

Dry mortar mixer

The dry mortar mixer is the core equipment of the dry mortar production line, which determines the quality of the mortars. Different mortar mixers can be used according to different types of mortar.

Single shaft plough share mixer

The technology of the plough share mixer is mainly from Germany, and it is a mixer commonly used in large-scale dry powder mortar production lines. The plough share mixer is mainly composed of an outer cylinder, a main shaft, plough shares, and plough share handles. The rotation of the main shaft drives the plowshare-like blades to rotate at a high speed to drive the material to move rapidly in both directions, so as to achieve the purpose of mixing. The stirring speed is fast, and a flying knife is installed on the wall of the cylinder, which can quickly disperse the material, so that the mixing is more uniform and faster, and the mixing quality is high.

Single shaft plough share mixer（small discharge door）

Single shaft plough share mixer（small discharge door） (3)

Single shaft plough share mixer（small discharge door） (4)

Single shaft plough share mixer（big discharge door）

Single shaft plough share mixer（super high speed）

Single shaft plough share mixer（super high speed） (3)

Single shaft plough share mixer（super high speed） (4)

Single shaft plough share mixer（super high speed） (5)

Single shaft plough share mixer（super high speed） (6)

Weighing hopper

Raw Material Weighing Hopper
Weighing system: Accurate and stable, quality controllable.
Using high-precision sensors, step feeding, and special bellows sensors to achieve high-precision weighing and ensure production quality.

Description

The weighing bin consists of hopper, steel frame, and load cell (the lower part of the weighing bin is equipped with a discharge screw). The weighing bin is widely used in various mortar lines to weigh ingredients such as cement, sand, fly ash, light calcium, and heavy calcium. It has the advantages of fast batching speed, high measurement accuracy, strong versatility, and can handle various bulk materials.

Working principle

The measuring bin is a closed bin, the lower part is equipped with a discharge screw, and the upper part has a feeding port and a breathing system. Under the instruction of the control center, the materials are sequentially added to the weighing bin according to the set formula. After the measurement is completed, wait for the instructions to send the materials to the bucket elevator inlet of the next link. The entire batching process is controlled by PLC in a centralized control cabinet, with high degree of automation, small error and high production efficiency.

Product hopper

The finished product hopper is a closed silo made of alloy steel plates for storing mixed products. The top of the silo is equipped with a feeding port, a breathing system and a dust collection device. The cone part of the silo is equipped with a pneumatic vibrator and an arch breaking device to prevent the material from being blocked in the hopper.

Valve bag packing machine

According to the requirements of different customers, we can provide three different types of packing machine, impeller type, air blowing type and air floating type for your choice. The weighing module is the core part of the valve bag packing machine. The weighing sensor, weighing controller and electronic control components used in our packaging machine are all first-class brands, with large measuring range, high precision, sensitive feedback, and the weighing error could be ±0.2 %, can fully meet your requirements.

Control cabinet

The equipment listed above is the basic type of this type of production line.

If it is necessary to reduce dust in the workplace and improve the working environment of workers, a small pulse dust collector can be installed.

In short, we can do different program designs and configurations according to your requirements.

Scope of application

The simple production line is suitable for the production of dry mortar, putty powder, plastering mortar, skim coat and other powder products. The whole set of equipment is simple and practical, with small footprint, low investment and low maintenance cost. It is an ideal choice for small dry mortar processing plants.

Company Profile

CORINMAC-Cooperation& Win-Win, this is the origin of our team name.

This is also our operating principle: through teamwork and cooperation with customers, create value for individuals and customers, and then realize the value of our company.

Since its founding in 2006, CORINMAC has been a pragmatic and efficient company. We are committed to finding the best solutions for our customers by providing high-quality equipment and high-level production lines to help customers achieve growth and breakthroughs, because we deeply understand that customer's success is our success!

Customer visits

Welcome to CORINMAC. CORINMAC's professional team offers you comprehensive services. No matter which country you come from, we can provide you with the most considerate support. We have extensive experience in dry mortar manufacturing plants. We will share our experience with our customers and help them start their own business and make money. We thank our customers for their trust and support!

Packaging for shipment

CORINMAC has professional logistics and transportation partners who have cooperated for more than 10 years, providing door-to-door equipment delivery services.

User Feedback

Our products have won a good reputation and recognition in more than 40 countries, including the United States, Russia, Kazakhstan, Kyrgyzstan, Uzbekistan, Turkmenistan, Mongolia, Vietnam, Malaysia, Saudi Arabia, the United Arab Emirates, Qatar, Peru, Chile, Kenya, Libya, Guinea, Tunisia, etc.

Case I

Case II

Transport Delivery

CORINMAC has professional logistics and transportation partners who have cooperated for more than 10 years, providing door-to-door equipment delivery services.

Transport to customer site

Installation and commissioning

CORINMAC provides on-site installation and commissioning services. We can send professional engineers to your site according to your requirements and train on-site personnel to operate the equipment. We can also provide video installation guidance services.
