Efficient and non-polluting Raymond Mill

Short Description:

Pressurizing device with high pressure spring can improve the grinding pressure of roller, which makes efficiency improved by 10%-20%. And the sealing performance and dust removal effect is pretty good.

Capacity: 0,5-3TPH; 2.1-5.6 TPH; 2.5-9.5 TPH; 6-13 TPH; 13-22 TPH.

Applications: Cement, Coal, power plant desulfurization, metallurgy, chemical industry, non-metallic mineral, construction material, ceramics.


Product Detail

Description

In dry mixes, there are usually mineral powders as aggregate, in order to obtain high quality mineral powder, YGM series high pressure mill is needed, which is applied in the industries of metallurgy, building materials, chemistry, mine, high-speed highway construction, hydroelectric power station, etc. for grinding non-combustible, non-explosive, brittle materials of medium, low hardness according to Mohs not higher than 9.3 classes, their moisture content is not higher than 6%.

Working Principle

The high pressure mill consists of a jaw crusher, bucket elevator, hopper, vibrating feeder, electronic control system, and main mill system, etc. In the main machine of a high-pressure mill with suspension rollers, the roller assembly through the horizontal axis hangs on the hanger, the hanger, the spindle and the scoop stand are fixedly tied, the pressure nip presses on the hanger, in the support on the horizontal axis it forces the roller to press on the ring when the electric motor through the drive unit drives the spindle, the scoop and the roller simultaneously and synchronously rotate, the roller rotates on the ring and around itself. The electric motor drives the analyzer through the drive unit, the faster the impeller rotates, the finer the produced powder. To ensure that the mill is operating under negative pressure, the increased air through the remaining air pipe between the fan and the main machine is released into the vacuum cleaner, after cleaning, the air is vented to the atmosphere.

Technical specifications

Мodel

Roller quantity

Roller size (mm)

Ring size (mm)

Feed particle size (mm)

Product fineness (mm)

Productivity (tph)

Motor Power (kw)

Weight (t)

YGM85

3

Φ270×150

Φ830×150

≤20

0.033-0.613

1-3

22

6

YGM95

4

Φ310×170

Φ950×160

≤25

0.033-0.613

2.1-5.6

37

11.5

YGM130

5

Φ410×210

Φ1280×210

≤30

0.033-0.613

2.5-9.5

75

20

User Feedback

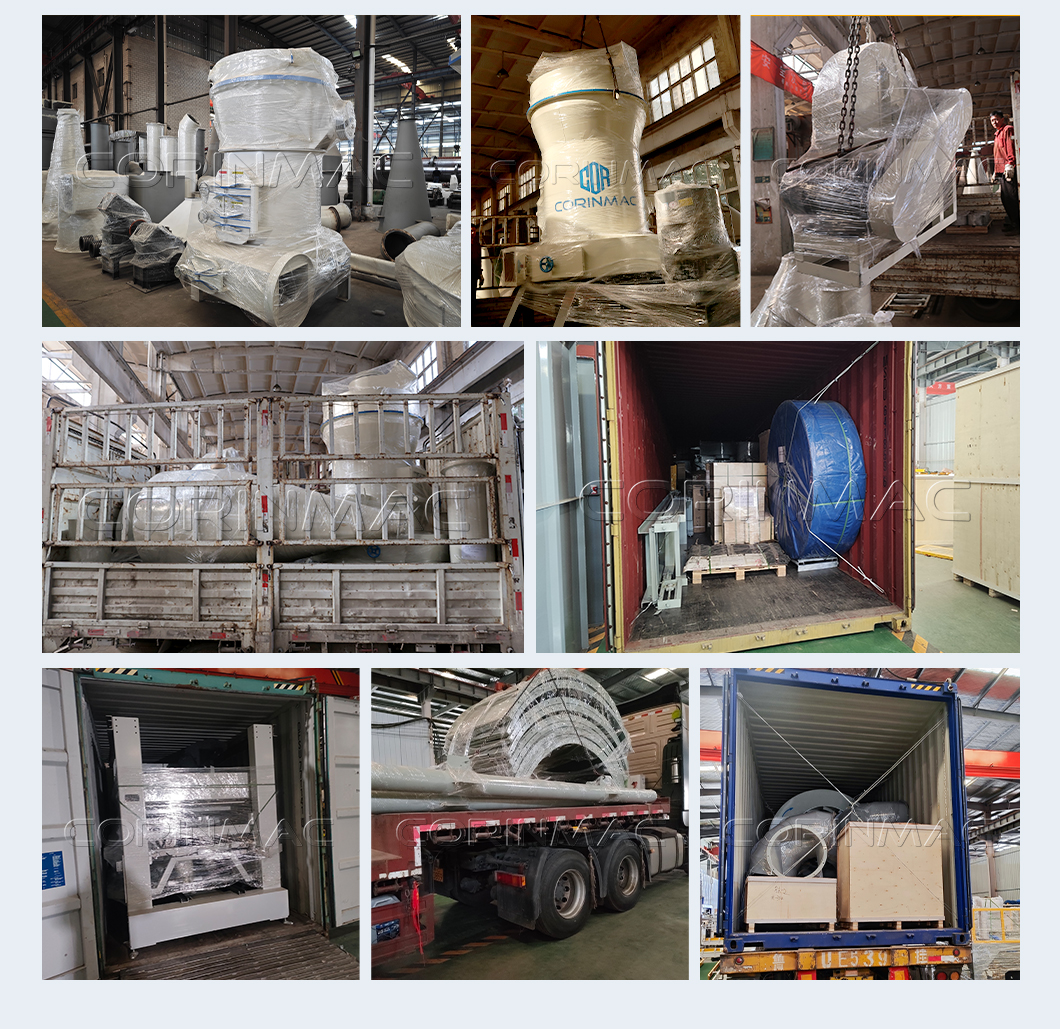

Transport Delivery
